Data Visualization & Dashboard Components

Dashboards in ML Clever are dynamic canvases built from individual **Data Visualization Components**. These components are the fundamental building blocks that transform your raw data into meaningful charts, key performance indicators (KPIs), tables, maps, and textual insights. They provide the visual language to understand trends, patterns, correlations, and performance metrics at a glance.

This guide covers everything you need to know about working with these components – from adding and configuring them to leveraging their interactive features and exploring the wide variety of available types. Mastering components is key to creating powerful, informative, and customized dashboards tailored to your specific analytical needs.

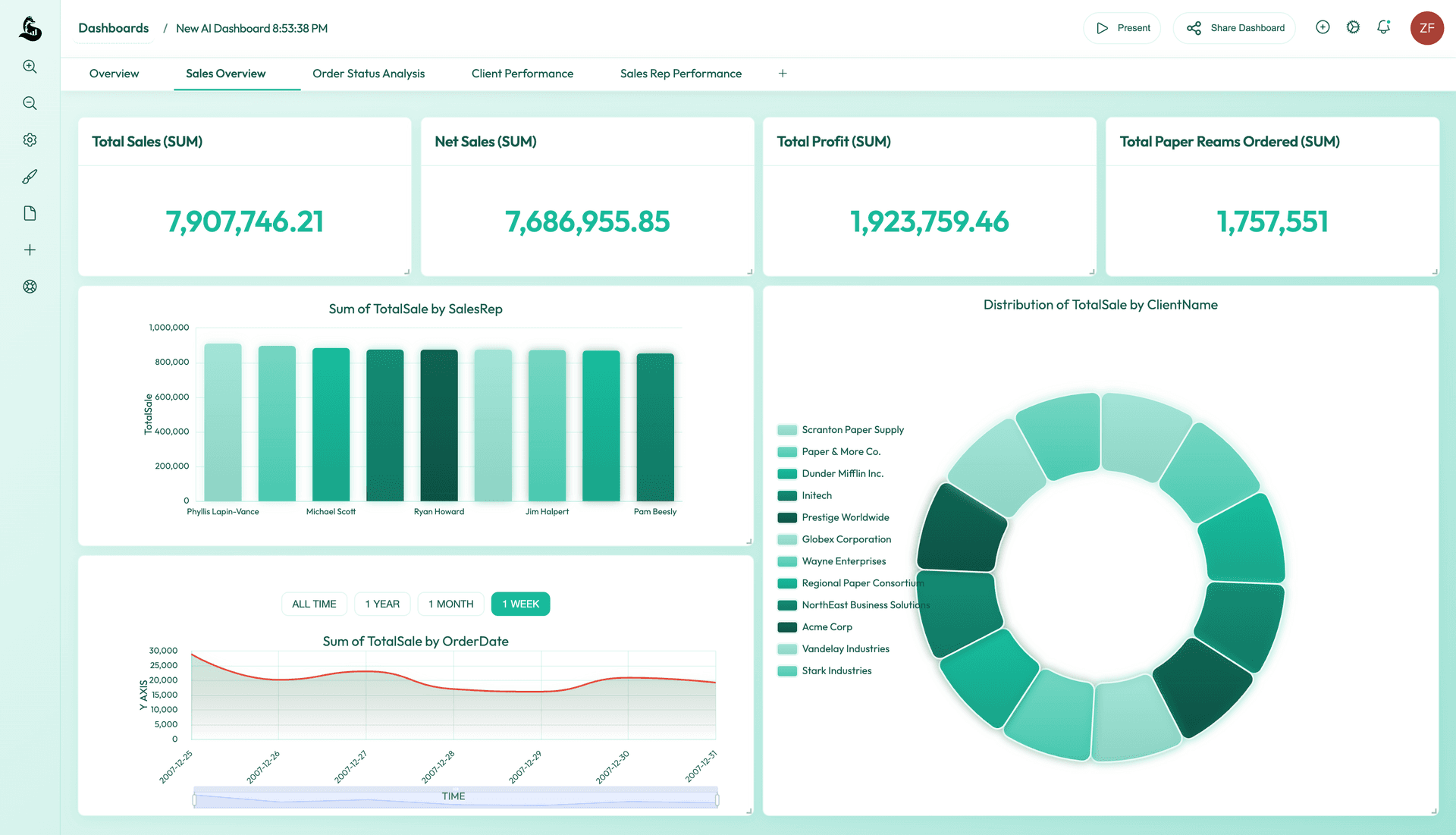

Example ML Clever dashboard showing various components

Understanding Dashboard Components

Think of each component as a self-contained, configurable module designed for a specific visualization or information display task. Key characteristics include:

Self-Contained Visual Unit

Each component renders a specific visualization (like a bar chart) or informational element (like a KPI card) within its designated area on the dashboard grid.

Highly Configurable

Components offer extensive settings to control data mapping (which columns to use), aggregation methods, appearance (colors, labels, orientation), and behavior through an intuitive settings panel.

Data-Driven

Most components connect to a specific dataset (or sometimes a trained model) and dynamically fetch and render data based on their configuration. They can often update in real-time when underlying data changes.

Interactive

Many components offer interactivity, such as tooltips on hover, clickable legends, zoom/pan capabilities within charts, and the ability to trigger actions or filtering (depending on the component type).

Component Anatomy

While components vary, many share common UI elements:

  • Content Area: The main space where the visualization (chart, table, map, etc.) is rendered.
  • Settings Icon (): Usually in a corner, clicking this opens the detailed configuration panel for that specific component instance.
  • Info Icon (): (Optional) May appear to show details about the connected dataset or model.
  • Lock Indicator (): Shows if the component's position and size are locked on the grid.
  • Real-time Status (): An indicator (like a colored dot) might show the connection status for real-time data updates.

Adding Components to Your Dashboard

You can populate your dashboard manually by adding components one by one. This gives you precise control over the content and initial setup. The typical manual workflow involves:

Workflow diagram for adding a component manually
1

Open the 'Add Component' Modal

Locate the "Add Component" button, typically found in the dashboard's main command bar or toolbar (often represented by a icon). Clicking this opens the component selection and configuration modal.

2

Select the Component Type

You'll be presented with a gallery of available component types (like the one shown in the 'Component Library' section below). Each type will have an icon, name, and description outlining its purpose. Choose the visualization that best suits the data you want to display.

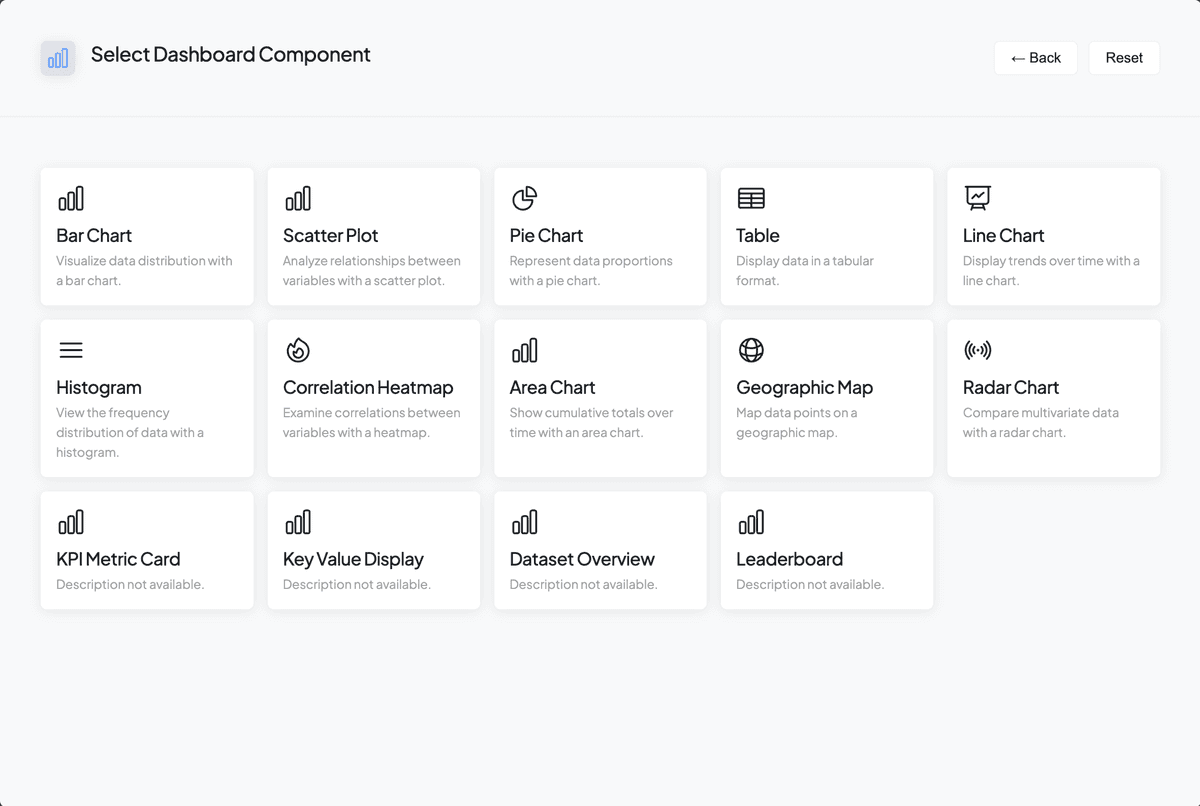

UI showing selection of component types
3

Set Initial Configuration Options

After selecting a type, a form with initial configuration options will appear. This typically involves crucial data mapping settings (e.g., selecting columns for X/Y axes, specifying the metric for a KPI) and essential parameters required for the component to render. Fill these out based on your dataset and visualization goal.

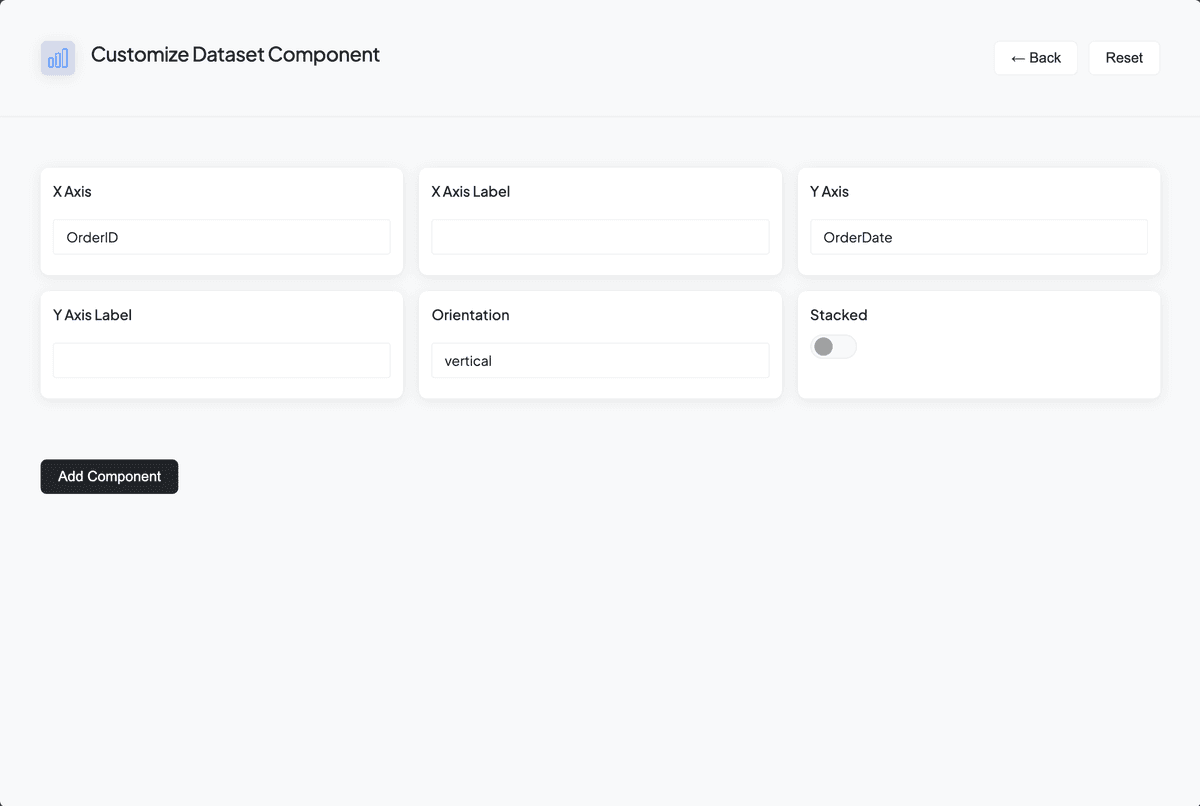

Form showing initial configuration options for a component
4

Add to Dashboard

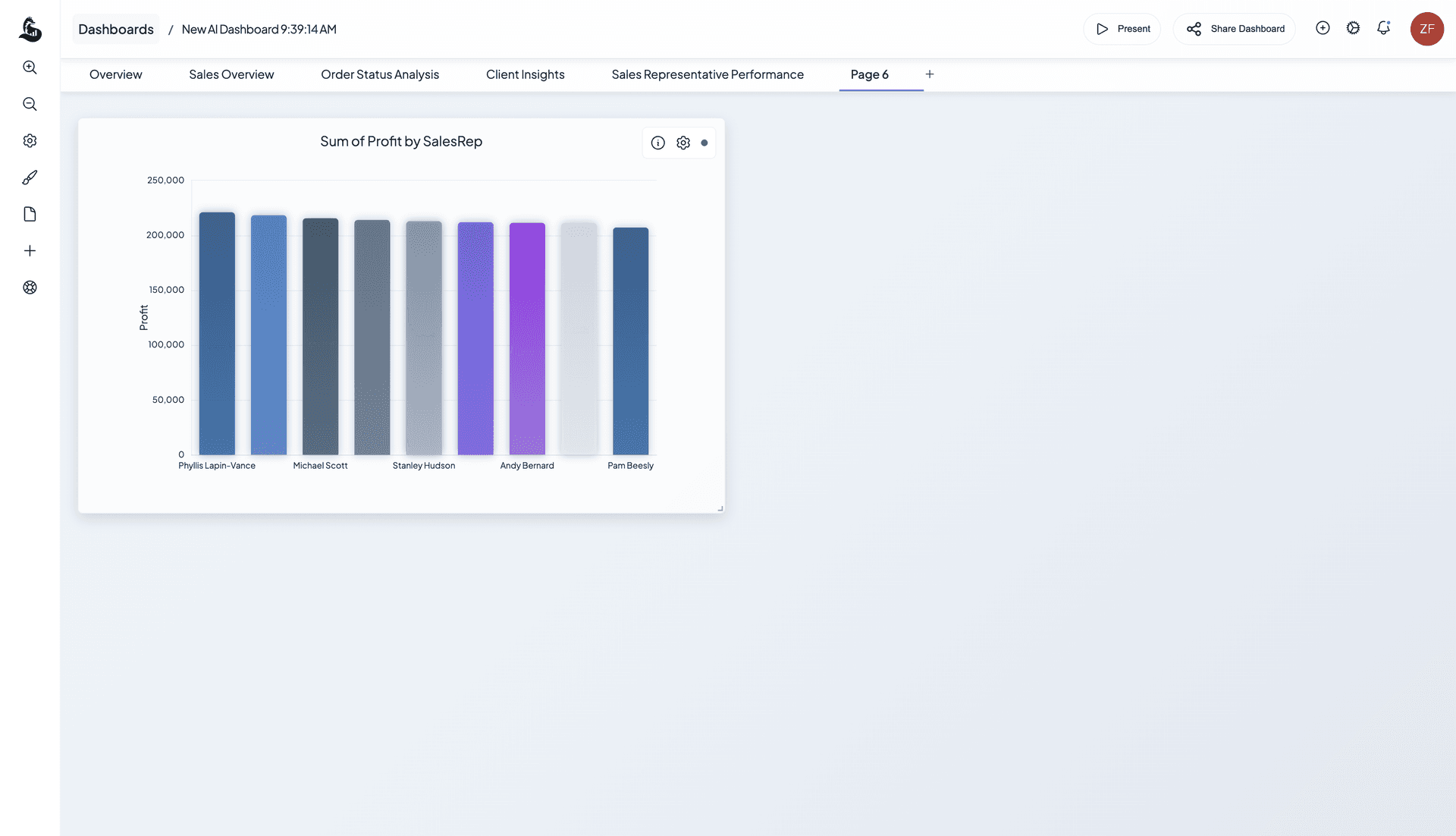

Once the initial configuration is set, click the "Add" or "Create" button. The component will be added to the current dashboard page, usually in the next available grid space. You can then reposition and resize it as needed.

Configuring Component Settings

After a component is added to your dashboard, you can fine-tune its behavior and appearance extensively using the Component Settings modal. This allows for detailed customization beyond the initial setup.

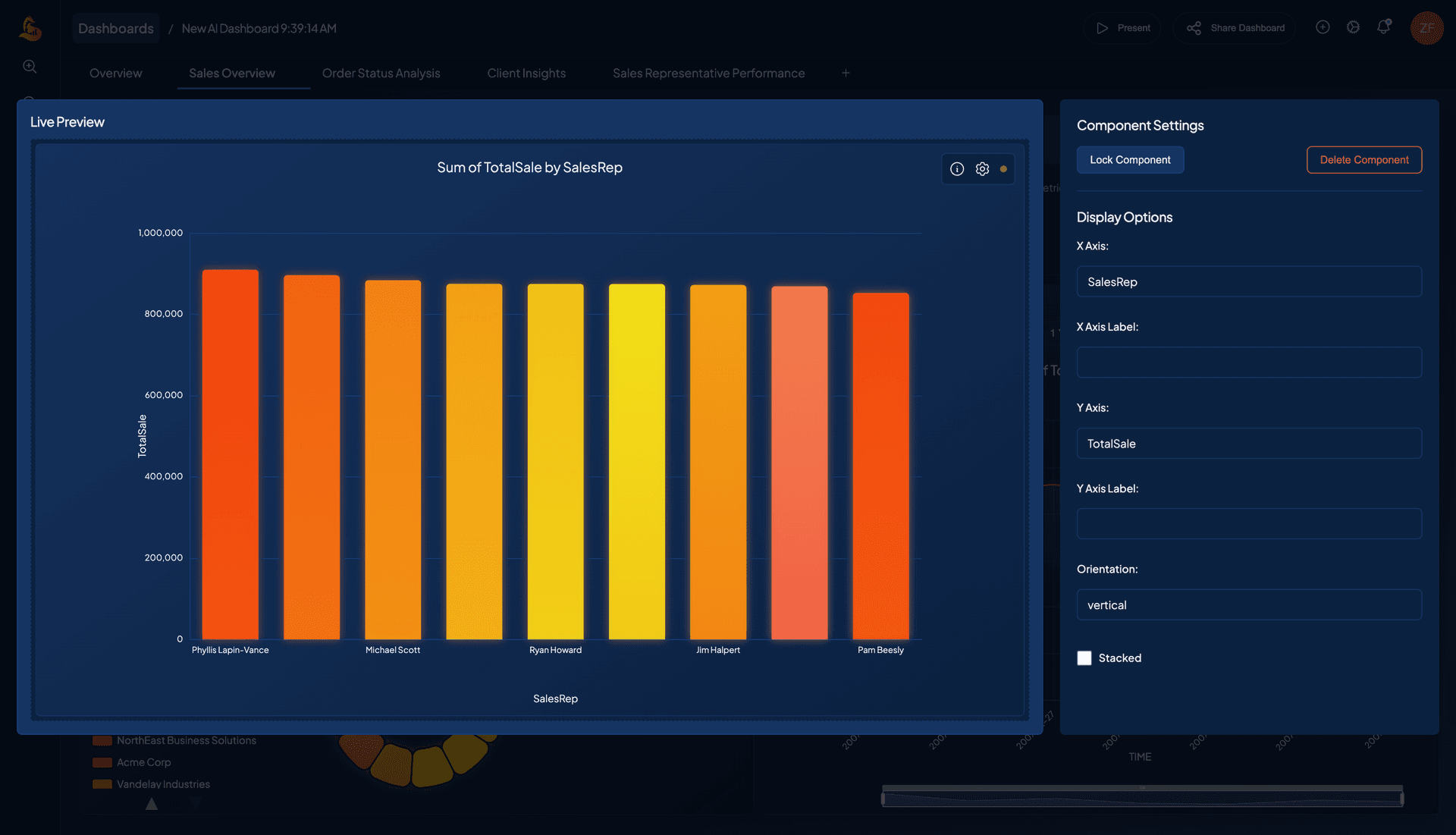

Component Settings modal showing live preview and configuration form

Settings Panel & Configuration

The settings panel provides powerful customization options and visual controls:

Accessing Settings

Settings Icon

Hover over the component on your dashboard to reveal a settings or cog icon, typically located in one of the corners. Clicking this icon opens the settings panel.

Modal Layout

The settings are presented within a modal window. This layout typically includes a live preview area alongside the configuration form, allowing you to see changes instantly.

Live Preview

The integrated preview pane shows an interactive representation of your component. It updates in real-time as you adjust settings in the form, providing immediate visual feedback.

Common Option Types

Text & Number Inputs Title, Size, Limits

Standard input fields are used for configuring text-based properties like titles and labels, or numerical values such as sizes, axis limits, data precision, and binning options for histograms.

Selectors & Toggles Columns, Orientation

Dropdown menus or selection lists allow you to choose from predefined options (e.g., data columns, chart types, orientation). Toggle switches provide simple on/off controls for boolean settings like 'Show Legend' or 'Enable Tooltips'.

Advanced Controls Color, K-V Pairs

More complex configurations might involve interactive color pickers for selecting specific hues or key-value pair editors for defining custom metadata or advanced display properties.

Other Actions

Prevents accidental modification.

Permanently removes component.

Instant Save: Changes made in the settings panel are saved automatically moments after modification, eliminating the need for an explicit "Save" button.

Interacting with Components on the Dashboard

Beyond configuration, components offer various ways to interact directly on the dashboard itself:

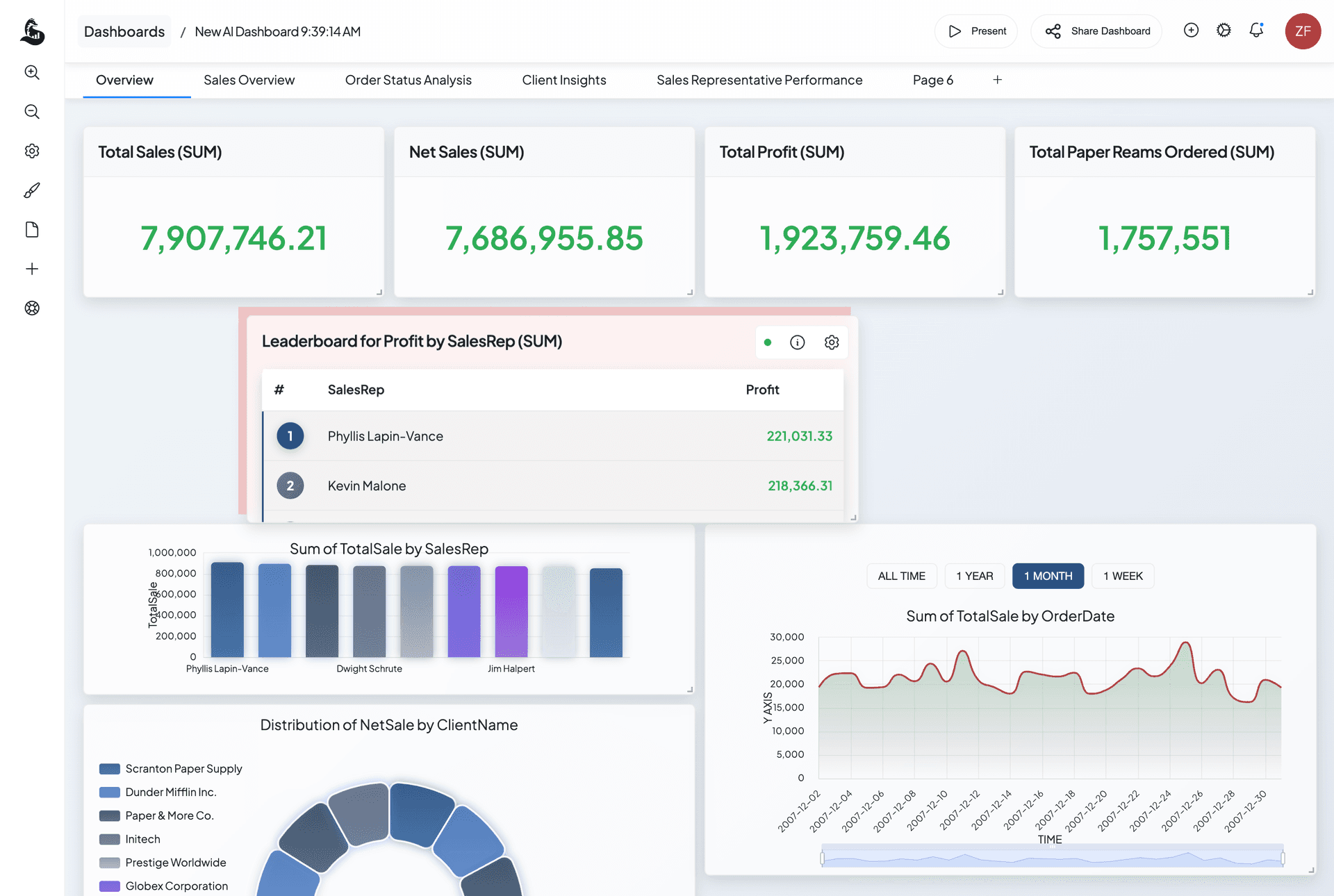

Interacting with components on the dashboard grid - moving, resizing, tooltips

Layout Manipulation

Unless locked, you can click and drag components to reposition them on the grid. Resize components by dragging their corners or edges to optimize dashboard layout and flow.

Locking / Unlocking

Use the Lock/Unlock action within the Component Settings modal to fix a component's position and size, preventing accidental changes during layout adjustments.

Tooltips & Hover Effects

Hover your mouse over chart elements (bars, points, slices) to view detailed tooltips displaying exact values and labels, providing granular insights without cluttering the main view.

Real-time Updates & Refresh

Components connected via WebSockets () can listen for events (like `data_ready`) and automatically refresh their data when notified. You may also be able to trigger a manual refresh via component settings in some cases.

Component Library: Available Types

ML Clever offers a diverse library of component types to suit various data visualization needs. Here are some of the commonly available options:

Bar Chart

Compare categorical values. Supports vertical/horizontal orientation and stacking.

Line Chart

Visualize trends over time or continuous relationships. Options for points and line smoothing.

Pie / Donut Chart

Show proportions and composition of categories.

Scatter Plot

Examine relationships and correlations between two numerical variables. Supports grouping.

Histogram

Display the distribution (frequency) of a single numerical variable across bins.

Area Chart

Show cumulative totals or volume over time. Can be stacked.

KPI Metric Card

Display a single, crucial performance indicator with aggregation (sum, avg, count) and optional formatting.

Leaderboard

Display ranked data based on one or more metrics within categories.

Gauge

Visualize a single value against a defined minimum and maximum range.

Data Table

Display raw or aggregated data in a sortable, searchable tabular format.

Correlation Heatmap

Visualize correlation coefficients between multiple numerical variables.

Tree Map

Display hierarchical data using nested rectangles sized by value.

Sunburst

Visualize hierarchical data radially, showing proportions within nested levels.

Sankey Diagram

Illustrate flow and magnitude between different nodes or stages.

Geographic Map

Plot data points (latitude/longitude) on an interactive map, potentially sized or colored by value.

Text Area

Add rich text, commentary, analysis, instructions, or titles to provide context to your dashboard.

Note: The exact list of available components may vary based on your ML Clever version and configuration. Some components might require specific data formats.

Best Practices for Effective Visualization

Creating visually appealing and insightful dashboards involves more than just adding components. Consider these principles:

Choose the Right Tool for the Job

Select chart types appropriate for the data and the insight you want to convey (e.g., line charts for trends, bar charts for comparisons, scatter plots for correlations, pie charts for proportions).

Simplicity and Clarity

Avoid clutter. Don't overload charts with too much information (too many series, excessive labels). Ensure axes and titles are clear and concise.

Effective Use of Color

Leverage the dashboard's theme settings and color palettes consistently. Use color meaningfully to distinguish categories or highlight key data points, not just for decoration.

Context is Crucial

Use Text Area components or clear titles to explain what the visualizations show, what the KPIs mean, and any important context or assumptions.

Logical Layout and Flow

Arrange components logically on the dashboard grid. Place high-level summaries or KPIs prominently (top or left). Group related components together to tell a coherent story.

Troubleshooting Component Issues

Encountering issues with a specific component? Here are some common problems and how to address them:

ProblemTroubleshooting Steps
Component Shows "Loading..." or No Data

• Verify Data Mappings: Open Component Settings () and double-check that the correct dataset columns are selected for axes, values, metrics, etc.

• Check Dataset: Ensure the underlying dataset exists, is accessible, and contains relevant data for the selected columns.

• Refresh Data: Try manually refreshing the component data (if an option exists in settings) or check the real-time socket connection status ().

• Check Filters: Ensure dashboard-level filters aren't excluding all relevant data for this component.

Cannot Save Settings / Settings Revert

• Check for Errors: Look for any red error messages within the settings modal or in the browser's developer console.

• Validate Inputs: Ensure all required fields (*) are filled correctly and numerical inputs are within valid ranges.

• Permissions: Verify you have the necessary permissions to edit the dashboard and its components.

• Network Issues: Temporary network problems could prevent saving. Try again after ensuring a stable connection.

Live Preview Doesn't Update

• Wait a Moment: Complex changes might take a second or two to reflect.

• Check Console: Look for JavaScript errors in the browser's developer console that might be blocking the update.

• Incompatible Settings: Some combinations of settings might be invalid and prevent the preview from rendering. Try reverting the last change.

• Refresh Modal/Page: As a last resort, try closing and reopening the settings modal, or refreshing the entire dashboard page.

Chart Looks Incorrect / Misleading

• Re-check Data Mappings: Ensure you're plotting the intended columns on the correct axes and using the right aggregation method (sum vs. average, etc.).

• Understand Data Types: Make sure you're not trying to plot categorical data on a numerical axis or vice-versa without appropriate transformation.

• Check Component Type: Verify you've chosen the most appropriate chart type for the relationship you're trying to show.

• Consult Data: Go back to the dataset view and examine the raw data for the columns being used to understand any anomalies or characteristics affecting the visualization.
